Working with OpenStack Barbican
Barbican is the OpenStack Key Manager service. It provides secure storage, provisioning and management of secret data. This includes keying material such as Symmetric Keys, Asymmetric Keys, Certificates and raw binary data. In our default Cloud Core deployment, Cinder, Nova, and Octavia use Barbican to manage secrets. In this guide, we demonstrate booting a VM with an encrypted volume.
What can I do with a Secret Store?
With Barbican configured the service can be utilized for a number of use cases.
- Image signature verification
- Disk and volume encryption
- SSL/TLS keypair storage
- Secure password storage
See the OpenStack Security Guide for additional information.
If Barbican is not installed to your cloud, see our guide or submit a support ticket for installation.
Creator Keystone Role
The creator Keystone role is required by non-admin users who wish to use
Barbican to manage secrets. The admin role is required to modify the roles of
a user.
Set the creator role using:
openstack role add creator --user nick --project 966582d3de534089a36cc39a2e5d0ff9

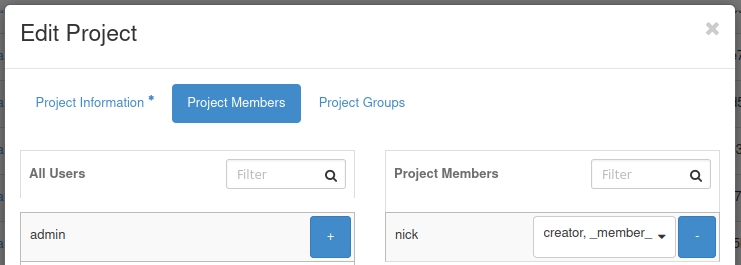

Alternatively, in Horizon, you can adjust the role for a user by navigating to
Identity -> Projects.
Encrypted Volume Type
You can create encrypted volumes with Cinder. Before creating an encrypted volume, a new volume type in Cinder must be created. Create a new Encrypted Volume type using:
openstack volume type create --encryption-provider luks --encryption-cipher aes-xts-plain64 --encryption-key-size 256 --encryption-control-location front-end encrypted
Output:
+-------------+-----------------------------------------------------------------------------------------------------------------------------------------------+
| Field | Value |
+-------------+-----------------------------------------------------------------------------------------------------------------------------------------------+
| description | None |
| encryption | cipher='aes-xts-plain64', control_location='front-end', encryption_id='bd8cc91f-877a-4c13-a0b1-65b236f0c3c6', key_size='256', provider='luks' |
| id | 6677cb0d-b548-4eb5-b789-aadacfd6ec94 |
| is_public | True |
| name | encrypted |
+-------------+-----------------------------------------------------------------------------------------------------------------------------------------------+
Encrypted Volume
Create an encrypted volume using:
openstack volume create --size 10 --type encrypted --image 'Ubuntu 22.04 (Jammy)' --bootable ubuntu22
Output:
+---------------------+--------------------------------------+
| Field | Value |
+---------------------+--------------------------------------+
| attachments | [] |
| availability_zone | nova |
| bootable | false |
| consistencygroup_id | None |
| created_at | 2023-10-05T19:37:09.563568 |
| description | None |
| encrypted | True |
| id | dd4fc56c-d1f1-4700-add2-d06c0183dbe3 |
| migration_status | None |
| multiattach | False |
| name | ubuntu22 |
| properties | |
| replication_status | None |
| size | 10 |
| snapshot_id | None |
| source_volid | None |
| status | creating |
| type | encrypted |
| updated_at | None |
| user_id | 2d1fd7d55b4f49f3b5bde488b6bc949f |
+---------------------+--------------------------------------+
Spin up a VM with Encrypted Volume
Using the encrypted volume created in the previous step, spin up a VM with it using:
vol=dd4fc56c-d1f1-4700-add2-d06c0183dbe3
openstack server create --flavor gen.small --volume $vol --network External --security-group "SSH ingress" --key-name key ubuntu22_encrypted
Output:
+-------------------------------------+---------------------------------------------+
| Field | Value |
+-------------------------------------+---------------------------------------------+
| OS-DCF:diskConfig | MANUAL |
| OS-EXT-AZ:availability_zone | |
| OS-EXT-SRV-ATTR:host | None |
| OS-EXT-SRV-ATTR:hypervisor_hostname | None |
| OS-EXT-SRV-ATTR:instance_name | |
| OS-EXT-STS:power_state | NOSTATE |
| OS-EXT-STS:task_state | scheduling |
| OS-EXT-STS:vm_state | building |
| OS-SRV-USG:launched_at | None |
| OS-SRV-USG:terminated_at | None |
| accessIPv4 | |
| accessIPv6 | |
| addresses | |
| adminPass | NWqPR38Qj48L |
| config_drive | |
| created | 2023-10-05T19:45:51Z |
| flavor | gen.small (gen.small) |
| hostId | |
| id | ea82e509-7efa-44a7-ba2b-e6364f458958 |
| image | N/A (booted from volume) |
| key_name | key |
| name | ubuntu22_encrypted |
| progress | 0 |
| project_id | 4993ac59480646b6b15ae7727279ca11 |
| properties | |
| security_groups | name='6ffcdf91-d8dd-4499-98e1-0860267ea08e' |
| status | BUILD |
| updated | 2023-10-05T19:45:51Z |
| user_id | 2d1fd7d55b4f49f3b5bde488b6bc949f |
| volumes_attached | |
+-------------------------------------+---------------------------------------------+
