Manage Node Firewall Using iptables

Use Case

In cases where access restriction and attack surface reduction is key, your project landscape may require assets and management be accessible only to select IPs or networks (such as a company VPN). Such a restriction can be handled on the Hardware Node level, allowing access to be easily managed separately without interference from or with Docker or OpenStack internal communication.

Goal

Use iptables and ipset to restrict access to local (eg. SSH) and/or Cloud services (HAProxy) on an OpenStack node without interfering with Docker.

Prerequisites

Root SSH access to node
Knowledge of OS package management
OpenVSwitch Firewall Driver
Kolla Ansible (if driver reconfigure required)

Identify Active Firewall Driver

You will first need to identify the driver actively in use by Neutron port security. This is defined in openvswitch_agent.ini. This can be confirmed using the grep command.

[root@exhilarated-firefly ~]# grep firewall_driver /etc/kolla/neutron-openvswitch-agent/openvswitch_agent.ini
firewall_driver = neutron.agent.linux.iptables_firewall.OVSHybridIptablesFirewallDriver

If the firewall_driver is defined as openvswitch proceed to Setup.

Reconfigure Firewall Driver with Kolla Ansible

If the default Hybrid driver is in use you will need to update the Kolla Ansible configuration at /etc/kolla/config/neutron/openvswitch_agent.ini.

If the openvswitch_agent.ini file does not exist, create it with the following contents:

# Ensures firewall rules are fully-managed in OVS instead of using
# host iptables
[securitygroup]
firewall_driver = openvswitch

[root@exhilarated-firefly ~]# cat /etc/kolla/config/neutron/openvswitch_agent.ini

# Ensures firewall rules are fully-managed in OVS instead of using
# host iptables
[securitygroup]
firewall_driver = openvswitch

Once in place, reconfigure the cloud with kolla-ansible reconfigure you can target just the changed services with --tags neutron,openvswitch:

(.kolla-admin) [root@exhilarated-firefly kolla-ansible]# kolla-ansible -i /etc/fm-deploy/kolla-ansible-inventory reconfigure --tags neutron,openvswitch
Reconfigure OpenStack service : ansible-playbook -i /etc/fm-deploy/kolla-ansible-inventory -e @/etc/kolla/globals.yml  -e @/etc/kolla/passwords.yml -e CONFIG_DIR=/etc/kolla  --tags neutron,openvswitch -e kolla_action=reconfigure -e kolla_serial=0 /opt/kolla-ansible/.kolla-admin/share/kolla-ansible/ansible/site.yml
[WARNING]: Invalid characters were found in group names but not replaced, use -vvvv to see details
[WARNING]: Could not match supplied host pattern, ignoring: enable_nova_True

--- OUTPUT TRUNCATED ---

PLAY RECAP *********************************************************************************************************************************************************************************************************
exhilarated-firefly        : ok=33   changed=5    unreachable=0    failed=0    skipped=18   rescued=0    ignored=0
gifted-wildcat             : ok=43   changed=6    unreachable=0    failed=0    skipped=19   rescued=0    ignored=0
localhost                  : ok=4    changed=2    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0
upbeat-peacock             : ok=33   changed=5    unreachable=0    failed=0    skipped=18   rescued=0    ignored=0

Confirm your change is now reflected:

[root@exhilarated-firefly kolla-ansible]# grep firewall_driver /etc/kolla/neutron-openvswitch-agent/openvswitch_agent.ini
firewall_driver = openvswitch

Proceed to installation.

Install and Configure Firewall

CAUTION! This process can potentially result in loss of access to your cloud. Perform these steps on one node at a time to limit the possibility of total loss of access.

Install ipset and iptables

Begin by installing the required packages with yum:

yum install iptables-services ipset ipset-service -y
-- OUTPUT TRUNCATED ---
Installed:
  ipset-7.1-1.el8.x86_64         ipset-libs-7.1-1.el8.x86_64           ipset-service-7.1-1.el8.noarch           iptables-services-1.8.4-17.el8_4.1.x86_64

Complete!

Configure Services

Identify the nodes vlan bond devices with ip:

[root@exhilarated-firefly ~]# ip -br a | awk -F'@bond0' '/bond0\./{print$1}'
bond0.393
bond0.392
bond0.396
bond0.394
bond0.395
bond0.8

Create a new iptables configuration at /etc/sysconfig/iptables.

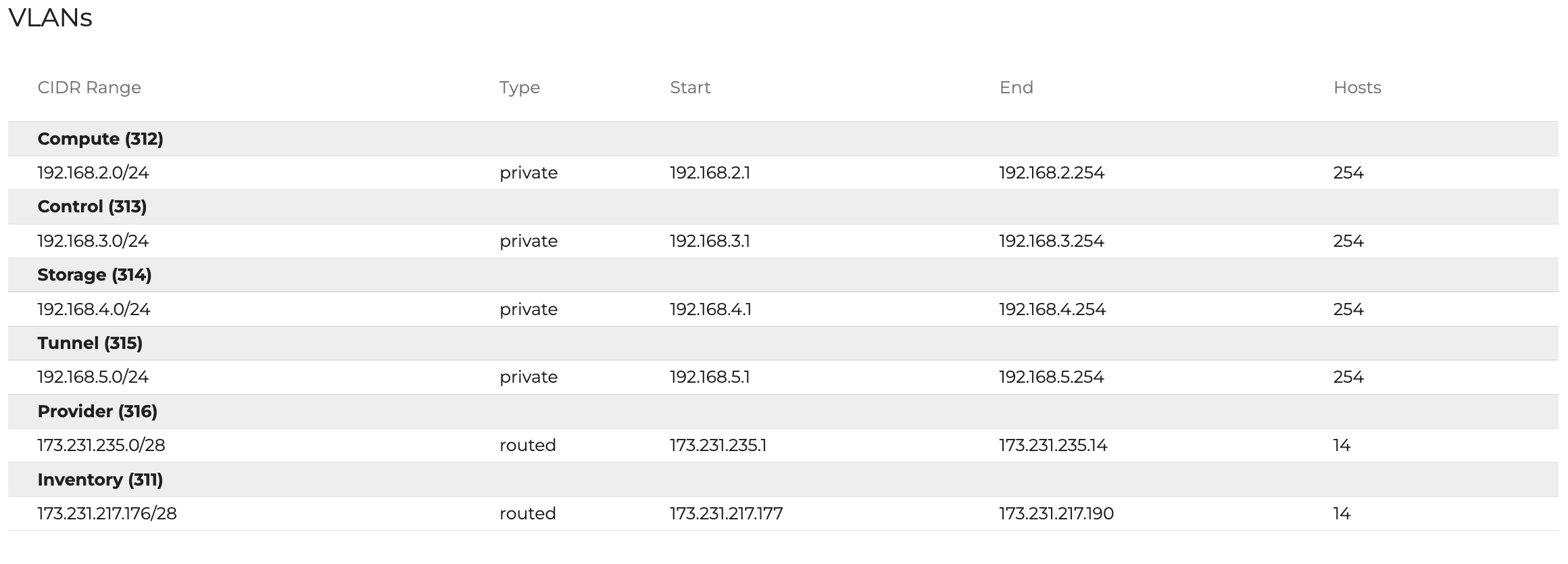

NOTE!: To ensure all VLAN traffic is accepted, special attention must be paid to the ACCEPT rules (eg. bond0.304 etc). Be sure to update the Local VLAN rules with the nodes identified interface names

*filter
:INPUT ACCEPT [0:0]
:FORWARD ACCEPT [0:0]
:OUTPUT ACCEPT [0:0]
-A INPUT -i lo -j ACCEPT -m comment --comment "localhost"
-A OUTPUT -o lo -j ACCEPT -m comment --comment "localhost"
-A INPUT  -j ACCEPT -m pkttype --pkt-type multicast -m comment --comment "multicast"
-A OUTPUT -j ACCEPT -m pkttype --pkt-type multicast -m comment --comment "multicast"
-A INPUT -j ACCEPT -m pkttype --pkt-type broadcast -m comment --comment "broadcast"
-A OUTPUT -j ACCEPT -m pkttype --pkt-type broadcast -m comment --comment "broadcast"
-A INPUT  -j DROP -m set --match-set blacklist src -m comment --comment "blacklist"
-A OUTPUT -j DROP -m set --match-set blacklist dst -m comment --comment "blacklist"
-A INPUT -p icmp -j ACCEPT -m comment --comment "allow icmp"
-A INPUT  -m state --state RELATED,ESTABLISHED -j ACCEPT -m comment --comment "connection tracking"
-A INPUT -i bond0.304 -j ACCEPT -m comment --comment "Local VLAN - compute"
-A INPUT -i bond0.306 -j ACCEPT -m comment --comment "Local VLAN - control"
-A INPUT -i bond0.332 -j ACCEPT -m comment --comment "Local VLAN - storage"
-A INPUT -i bond0.333 -j ACCEPT -m comment --comment "Local VLAN - tunnel"
-A INPUT -i o-hm0 -j ACCEPT -m comment --comment "Octavia management"
-A INPUT -p vrrp -j ACCEPT
-A INPUT -p tcp -s 10.204.0.1 -m comment --comment "OMI Pod VLAN 8 management" -j ACCEPT
-A INPUT -p udp -s 10.204.0.1 -m comment --comment "OMI Pod VLAN 8 management" -j ACCEPT
-A INPUT -p tcp -s 173.231.217.0/28 -m comment --comment "OMI Pod Management and Support" -j ACCEPT
-A INPUT  -j ACCEPT -m set --match-set whitelist src -m comment --comment "whitelist"
-A INPUT -p tcp -m tcp --dport 22 -m state --state NEW -m comment --comment "ssh" -j ACCEPT
-A INPUT -p tcp -m tcp --dport 80 -m state --state NEW -m comment --comment "http/haproxy" -j ACCEPT
-A INPUT -p tcp -m tcp --dport 443 -m state --state NEW -m comment --comment "https/haproxy" -j ACCEPT
-A INPUT -j DROP
COMMIT

Create a new ipset configuration at /etc/sysconfig/ipset

###
# ipset IP lists
#
# To reload: systemctl restart ipset
##

create whitelist hash:net family inet hashsize 1024 maxelem 65536
create blacklist hash:net family inet hashsize 1024 maxelem 65536
create multicast hash:net family inet hashsize 1024 maxelem 65536

## Multicast/Broadcast IPs required for VRRP, DHCP, other protocols
add multicast 224.0.0.0/4
add multicast 255.255.255.255

## Whitelisted IPs

# OMI VPN IP (support)
add whitelist 173.231.218.25

# Add your additional IPs here...
#add whitelist W.X.Y.Z

The services now need to be restarted for the changes to take effect. Do NOT enable auto-start yet, in case something goes wrong.

[root@exhilarated-firefly ~]# systemctl restart ipset
[root@exhilarated-firefly ~]# systemctl restart iptables
[root@exhilarated-firefly ~]#

Confirm that the firewall is working as expected. This can be done by attempting to access services (SSH etc) from both a whitelisted IP and an undefined network.

Once confirmed, enable auto-start for both services.

[root@exhilarated-firefly ~]# systemctl enable ipset
Created symlink /etc/systemd/system/basic.target.wants/ipset.service → /usr/lib/systemd/system/ipset.service.
[root@exhilarated-firefly ~]# systemctl enable iptables
Created symlink /etc/systemd/system/multi-user.target.wants/iptables.service → /usr/lib/systemd/system/iptables.service.
[root@exhilarated-firefly ~]#

Copy the newly created files to the root users home folder accross the rest of the nodes.

[root@exhilarated-firefly ~]# for node in $(awk '!/localhost/&&/local/{print$NF}' /etc/hosts| grep -v $(hostname -s)); do echo "scp -i .ssh/fm-deploy /etc/sysconfig/ipset $node:~/new-ipset && scp -i .ssh/fm-deploy /etc/sysconfig/iptables $node:~/new-iptables"; done
scp -i .ssh/fm-deploy /etc/sysconfig/ipset gifted-wildcat:~/new-ipset && scp -i .ssh/fm-deploy /etc/sysconfig/iptables gifted-wildcat:~/new-iptables
scp -i .ssh/fm-deploy /etc/sysconfig/ipset upbeat-peacock:~/new-ipset && scp -i .ssh/fm-deploy /etc/sysconfig/iptables upbeat-peacock:~/new-iptables
[root@exhilarated-firefly ~]#

Deploy to the remaining nodes.
